DESCRIPTION
Ultimate Fun and a Rainbow of Colors to match your personal style

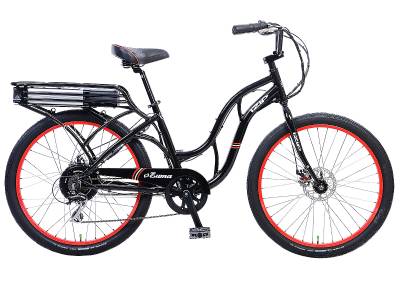

500 Watts of “Power on Demand” in a retro styled package. And top quality components from head to toe. That’s the all new IZIP E3 Zuma Cruiser. Old-school simplicity paired up with modern eBike technology and design for relaxed good times and an über-comfortable laid-back ride.
The IZIP E3 Zuma is a modern interpretation of the tried and true formula of everything that makes riding a cruiser great, including simplicity. Featuring our powerful, state-of-the-art, 36V / 500 Watt Currie Electro-Drive® hub motor, paired with our proprietary PAS/TAG system that puts you in complete control at all times.
Designed to give you options of either simple throttle power or pedal assist power allowing you to amplify your human power when selected. Powered by a large capacity EV Rated Li-ion type 36V11.4Ah 410Wh battery pack that easily removes from an integrated carrier platform allowing charging both on and off the bike.
A blast to ride and super comfortable - equipped with a plush Velo suspension comfort saddle and leather grips, stable Kenda Kiniption balloon tires with Slime® puncture resistant inner tubes and sure-stopping disc brakes both front and rear.
The E3 Zuma is just plain (zoom-zoom) F-U-N!
KEY FEATURES
- Real Transportation at Speeds 20 mph / 32 km/h and Range 20- 30 Miles / 32 - 48 km with Normal Pedaling (Rider Weight, Rider Input and Terrain Contingent)
- Upright Position with Comfortable Saddle for Rider Ease
- 36V11.4Ah 410Wh Lithium-ion Battery Pack is Quickly Removable from Rack to Allow Charging Anywhere.
- Twist and Go (TAG) Pedal Assist System (PAS) for Added Versatility
SPECIFICATIONS
| Specifications |
Description |
| MOTOR |
Exclusive Alloy Shell 500W DC Brushless Geared Hub Motor |
| MOTOR SPECIFICATIONS |
40 Nm Peak Torque, 18 Nm Rated Torque, 500 Watts |
| BATTERY |
EV Rated Li-ion type 36V11.4Ah 410Wh, Rear Rack Mounted, Rechargeable Cells, Advanced BMS |
| CHARGING SYSTEM |
UL Listed Currie Smart Charger with LED Status Display |
| CONTROLLER |
Exclusive Currie Electro-Drive?, 36 Volt Fully Potted with Power Gauge Function |
| TOP SPEED |
20mph / 32km/h (Rider Weight, Rider Input and Terrain Contingent) |
| RANGE |
20- 30 Miles / 32 - 48 km with Normal Pedaling (Rider Weight, Rider Input and Terrain
Contingent). |
| DRIVE |
Exclusive Currie Electro-Drive? Geared Hub Motor, Shimano Acera Rear Derailleur, SRAM Grip Shift, 7-Speed Drivetrain |
| BRAKES |
Avid BB5 Disc with Alloy Motor Inhibit Levers |
| WHEELS |
Alex 26" Double Wall Alloy Rims with Stainless Steel Spokes, QR Front |
| TIRES |
Kenda Kiniption 26? x 2.3?, Slime Self-Sealing Flat Tire Prevention System |
| HANDLEBAR/STEM |
Moto Bar and 4-bolt Ahead Type Stem, Stitched Leather Cruiser Grips |
| FORK |
Chromoly Unicrown with Disc Brake Mounts
|
| USER CONTROLS |
Power and PAS/TAG Switches Conveniently Mounted on the Handlebar, Easy Access Charger Port in Removable Battery Pack, Twist Throttle with Battery Gauge |
| SADDLE |
Velo Suspension Comfort and Micro-Adjust Post |
| FRAME |
Exclusive Currie Aluminum Comfort Design, Fender and Rack Mounts |
| CRANKS AND PEDALS |
Alloy 44T Crankset, Double Chainguard, Hi-impact Non-Slip Pedals |
| NET WEIGHT |
57 lbs / 26 kg |
| SIZES |
Cantilever Frame S/M (17", 43cm), L/XL ( 19", 48cm) and Low Step (17", 43cm) |
| BATTERY LIFE |
500 cycles |
| CHARGE TIME |
6-8 Hrs |
E-FACTS
Pedal Assist / Twist & Go
Allows users to select between two modes.
1. PAS Mode: Pedaling w/o throttle gives 50% of available power assist, conserving the battery. Pedaling while Activating Throttle iallows user to go from 50% to full power or anywhere in between.
2. TAG: No pedaling required, just throttle from 0% to 100% power
Mode
PAS/TAG System
The Advantage. Rider can select between two power assist modes.
The Benefit. TAG allows you to power the bike without pedaling at all. PAS mode without throttle stretches range and economizes battery usage.
Electro- Drive®
Powerful 500W DC High Torque Brushless Geared Hub Motor
The Advantage. Powerful brushless hub motor system drives the rear wheel.
The Benefit. Provides the power you need to climb hills or cut through a head wind.
Battery
Lithium-ion 36V11.4Ah 410Wh removable rack top mounted pack, Samsung rechargeable cells with advanced BMS with key lock and power system.
The Advantage. A little over 1/2 the weight of a conventional SLA battery pack and number of lifetime charges is 3 to 4 times longer.
The Benefit. Compact package size is easy to detach from the bike when locking outside or transporting. Simply carry inside to recharge.
